General Introduction

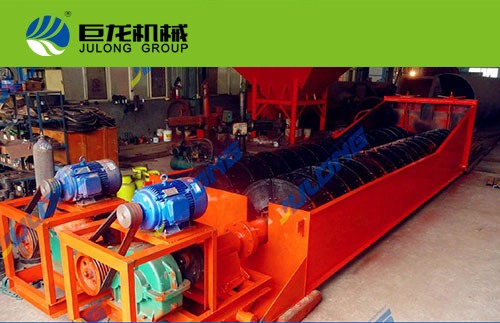

Spiral ore washing machine is the ore washing machine used for mechanical classification in the theory of” the different ratio of solid particle will result in the different sedimentation speed. XL series can be used for the classification, washing, cleaning in metallurgy, hydroelectricity, construction industry. Spiral ore washing machine can be applied in the work of cleaning and washing the particle and coarse particle.
Ore washing machine can be applies in the work of mud desilting in construction site, gravel concrete factory, hydroelectricity, and also can also be used in the ore washing ,classification, dehydration. Ore washing procession can be in the swagging machine, and can also be in the screening and classification.
Spiral ore washing machine separate the dust and impurity from the sand by making full use of the water buoyancy. The spiral piece is stirred to filter the water and eliminate the impurity. In the lifting procession, there is work of blend to make the sand blended evenly and uniformly.
Advantage and feature
Spiral ore washing machine has the feature of long spiral, good seal system, simple structure, big capacity, easy to maintenance, low water content, low mud content.
Basic papameter
|
Model |
Spiral dia（mm） |
Feeding particle（mm） |
Water consumption(t/h) |
Capacity (t) |
Power (kw) |
Dimension (mm) |
Weight (kg) |
|
2XL-762 |
762 |
≦10 |
40-150 |
140 |
211 |
11580×3965×2370 |
7440 |
|
2XL-914 |
914 |
≦10 |
105-620 |
200 |
215 |
9070×3300×1638 |
9531 |
|
2XL-1118 |
1118 |
≦10 |
125-1400 |
350 |
222 |
9070×3890×1900 |
16700 |
|
|
