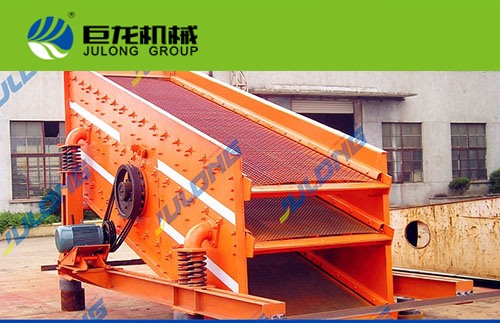

Name：Round vibrating screen

Details

General Introduction

This device is a circular vibration,multiple layers, high-efficiency new vibrating screen. It adjusts the amplitude through a roller-shape eccentric shaft vibration exciter and block. It has some obvious features, like long screen line, different size holes, stable structure, strong vibration force, high efficiency, low noise, long working life, simple maintenance, safety operation. This screen is widely used in mineral, building material, transportation, energy resources, chemical industry, and other related industries.

Advantages and features

1. New design with Advanced technology, large capacity, high efficiency.

2. Adjusts the amplitude through a roller-shape eccentric shaft vibration exciter and block.

3. Buffered connection, running smoothly.

4. Spring Steel screen with long working life,and not easy to be blocked.

5. Long working life, low noise, and etc.

Basic Parameters

Model	Sreeen Area(mm)	Layers	Hole size(mm)	Feeding size(mm)	Capacity(t/h)	Motor power(kw)	Motor model	Eccentric shaft speed(r/min)	Amplitude (mm)	Screenangle	Dimensions (mm)
2YA1237	1200*3700	2	3-50	≤200	7.5-80	4-15	Y160L-4/15	970	8	20	401022502660
3YA1237	1200*3700	3	3-50	≤200	7.5-80	4-15	Y160L-4/15	970	8	20	401022503140
2YA1548	1500*4800	2	5-50	≤400	50-208	4-15	Y160L-4/15	970	8	20	512025903060
3YA1548	1500*4800	3	5-50	≤400	50-250	4-15	Y160L-4/15	970	8	20	512025903540
2YA1848	1800*4800	2	5-80	≤400	50-260	4-18.5	Y180M-4/18.5	970	8	20	512029503060
3YA1848	1800*4800	3	5-80	≤400	50-300	4-18.5	Y180M-4/18.5	970	8	20	512029503540
2YA1860	1800*6000	2	5-80	≤400	50-300	4-18.5	Y180M-4/18.5	970	8	20	626029503480
3YA1860	1800*6000	3	5-80	≤400	50-350	4-22	Y180L-4/22	970	8	20	626029903960
2YA2160	2100*6000	2	5-150	≤400	100-500	4-22	Y180L-4/22	730	6-8	20	627034103670
3YA2160	2100*6000	3	5-100	≤400	100-500	4-30	Y200L-4/30	730	6-8	20	627034704100
2YA2460	2400*6000	2	5-150	≤400	150-700	4-37	Y225S-4/37	730	6-8	20	627037703610
3YA2460	2400*6000	3	5-150	≤400	150-700	4-37	Y225S-4/37	730	6-8	20	627037904100
